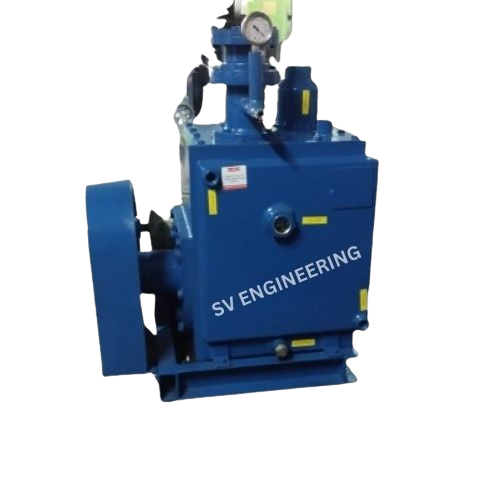

SV 1500 LPM OIL SEAL VACUUM PUMP
- 65,000
Belt Drive Rotary Vane Pumps SV 1500 LPM OIL SEAL VACUUM PUMP, Max Flow Rate: 1500 LPM, 3 HP ; Capacity. 90 m3/hr ; Voltage. 240 V ; Air Cooled System.
Description
SINGLE STAGE
DOUBLE STAGE
Description
Vacuum Pump is primarily used for AIR SUCTION to provide lower pressure for improving process parameters. We manufacture and supply vacuum pump from 0.25 HP to 50 HP range, and from small laboratory diaphargm pump of 15 LPM to large vacuum system with flow capacity of 150000 LPM.
SINGLE STAGE
| Power | 3 HP |
| Flow Rate | 90 m3/hr |
| Type | Belt Drive Rotary Vane Pumps |
| Ultimate Pressure | 0.05mm |
| Free air Displacement | 1500 LPM |
| Usage/Application | Industrial |
| Phase | TREE PHASE |
| Material | Cast Iron |
| Mounting | Portable |
| Motor Speed | 1440 |
| Warranty | Required |
| Capacity | 1500 LPM |
| Voltage | 220/240 |
| Motor Power | 3 HP |
| Speed | 1440 |
| Oil Tank Capacity | 25 LITER |
| Automation Grade | Manual |
| Motor Phase | Three Phase |
| Max Vacuum | 760 mm/hg |
| Color | BLUE |
| Vacuum | 760 |
| Pump Model | SV-1500 LPM Single Stage |
| C.F.M | 53.0 |
| I Deal In | New Only |
| Country of Origin | Made in India |
DOUBLE STAGE
| Power | 5 HP |
| Flow Rate | 90 m3/hr |
| Type | Belt Drive Rotary Vane Pumps |
| Ultimate Pressure | 0.005mm |
| Free air Displacement | 1500 LPM |
| Usage/Application | Industrial |
| Phase | Tree phase |
| Material | Cast Iron |
| Mounting | Portable |
| Motor Speed | 1440 |
| Warranty | Required |
| Capacity | 1500 LPM |
| Voltage | 220/240 |
| Motor Power | 35HP |
| Speed | 1440 |
| Oil Tank Capacity | 30 LITER |
| Automation Grade | Manual |
| Motor Phase | TREE PHASE |
| Max Vacuum | 760 mm/hg |
| Color | BLUE |
| Vacuum | 760 |
| Pump Model | SV-1500 LPM Double Stage |
| C.F.M | 53.0 |
| I Deal In | New Only |
| Country of Origin | Made in India |
